Key Specifications
Scan Speed
Up to 1000 kHz
Scan Range
0.6 m-150 m
Scan Time
<1 min - 6 min
.png?width=886&height=687&ext=.png "Product_Trimble_X9 (1)")

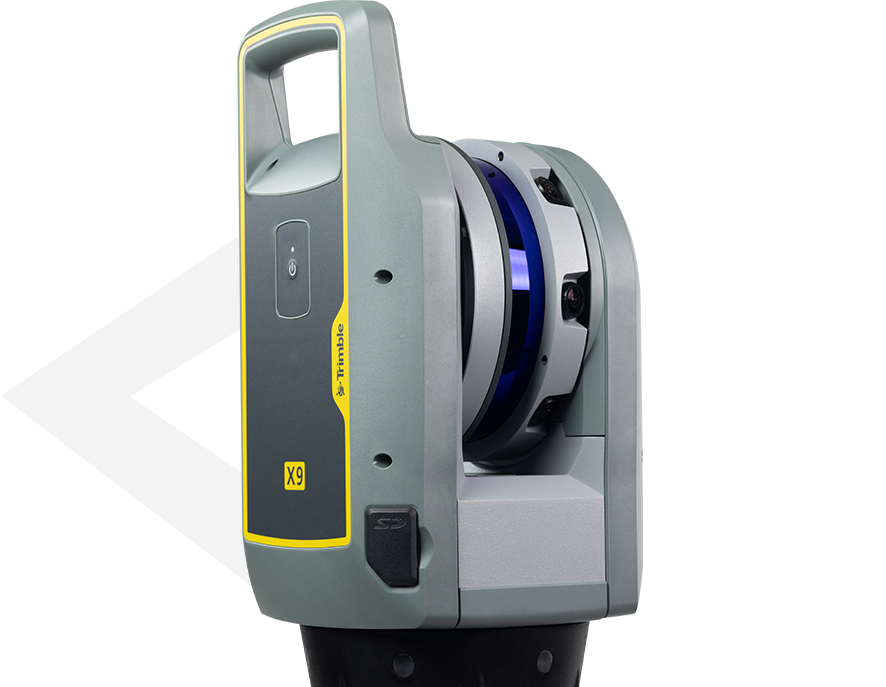

Trimble X9 3D Laser Scanning System
SKU: X9-100-00-T10X
- UNLOCK MORE POSSIBILITIES
The Trimble X9 3D laser scanning platform combines trusted Trimble technology with the precision, speed, and versatility you need to tackle any project. With flexible licensing options, you get the right scanning capabilities to match your workflow, on your terms. - Request A Quote
- Talk With A Rep

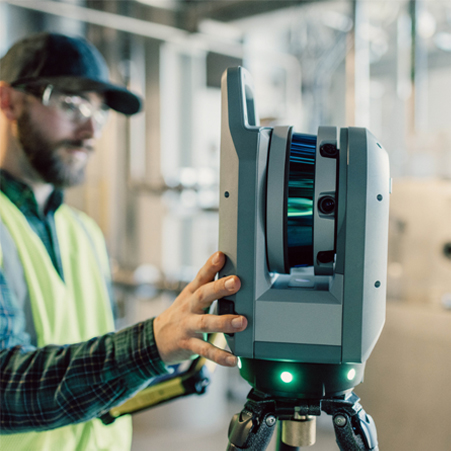

Automated, High-Speed 3D Scanning
Capture detailed, high-accuracy data in minutes. The Trimble X9 automates calibration and leveling, so you spend less time setting up and more time delivering results.

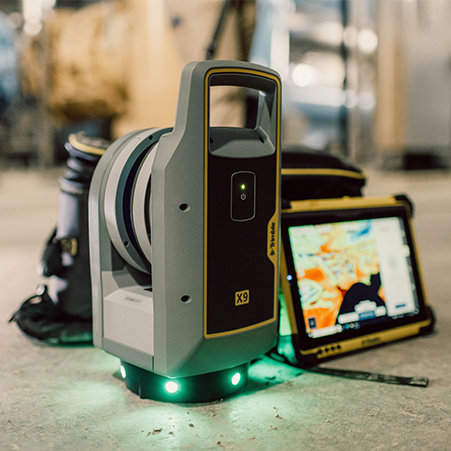

Seamless Workflow Integration
Easily move from field to office with seamless integration into Trimble Perspective and RealWorks. Process, analyze, and share data with confidence and speed.

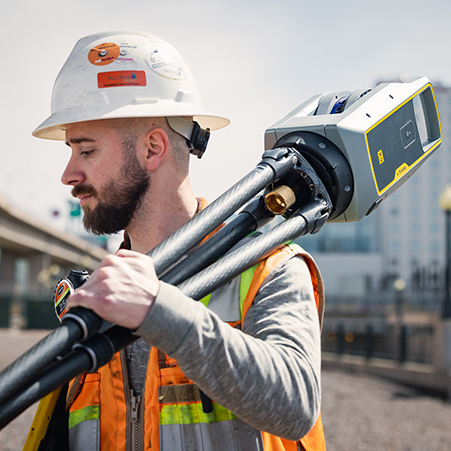

Built for Tough Environments
Designed for demanding field conditions, the X9 is IP55-rated, weather-resistant, and can operate in extreme temperatures, ideal for construction, civil, and industrial sites.
Precision Scanning, Simplified.
Description
Elevate your surveying capabilities to unprecedented levels with the Trimble X9 3D Laser Scanner – a leap forward in scanning technology, boasting substantial improvements over its predecessor, the X7.
Key Enhancements Over the X7:
-
Extended Range: The Trimble X9 offers an extended scanning range, allowing surveyors to capture data from greater distances without compromising on accuracy.
-
Enhanced Point Cloud Density: Experience a denser point cloud, providing richer detail and comprehensive data for more intricate and nuanced surveying projects.
-
Advanced Environmental Capabilities: The X9 is designed to excel in challenging environments, ensuring reliable and accurate scans even in adverse weather conditions or complex terrains.
-
Improved Field-to-Office Workflow: Benefit from streamlined data transfer and processing, enabling faster turnaround times and more efficient collaboration between the field and office.
-
Integrated Inertial Measurement Unit (IMU): The X9 features an integrated IMU for enhanced data accuracy and stability, ensuring precise georeferencing in dynamic surveying scenarios.
-
Extended Battery Life: Enjoy longer fieldwork sessions with an extended battery life, ensuring that the X9 keeps pace with your demanding surveying projects.
Why Upgrade to the Trimble X9?
Step into a new era of surveying excellence with the Trimble X9 3D Laser Scanner – a superior solution offering enhanced range, accuracy, and robust environmental capabilities. Maximize efficiency, elevate your surveying accuracy, and stay ahead in the dynamic field of laser scanning. Upgrade to the Trimble X9 for a future-ready surveying experience that sets a new standard in precision and performance.
Compare Terrestrial Scanning Systems
| Product | Scan Speed | Scan Range | Range Noise | 3D Point Accuracy | Scan Time | Imaging | Image Acquisition Time | Interface | Dual Axis Compensator | Ingress Protection | Laser Class |
| Trimble X9 Core | Up to 500 kHz | 0.6m-80m | < 1.5mm @ 30 m on 80% albedo | 3.0 mm @20 m | 2-7 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy less than 3", Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X9 Premium | Up to 1000 kHz | 0.6m-150m | < 1.5mm @ 30 m on 80% albedo | 3.0 mm @20 m | 1-6 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6 min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy less than 3", Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X12 | Up to 2,187 kHz | 0.3m - 250 m; 365 m (Ambiguity Interval) | 0.25mm @ 25m (136 kHz) | 2.2 mm @ 20 m | 1-3 minutes | 80 MP panorama, paralax free image matching | 2-2.5 min (HDR) | Onboard touchscreen or Trimble Perspective on Windows tablet | Accuracy 14", Range ±0.5°, Resolution 0.001° | IP54 | Laser class 1, eye safe in accordance with IEC 60825-1 |
| Trimble SX12 | 26.6 kHz | 0.9m - 600m | 1.5mm @ 50 m on 18-90% reflectivity | 2.5mm @100 m std dev on sphere target position | 12 minutes | 3 calibrated cameras in telescope powered by Trimble VISION™ technology | 2.5 min Standard | WLAN via Trimble Access | Accuracy 0.5", Range ±5.4', Resolution 0.3" | IP55 | Pulsed laser 1550 nm; Laser class 1M |
