Key Specifications
Angular Accuracy
1″
Scan Speed
Up to 26,600 pts/sec
Scan Range
Up to 600 m

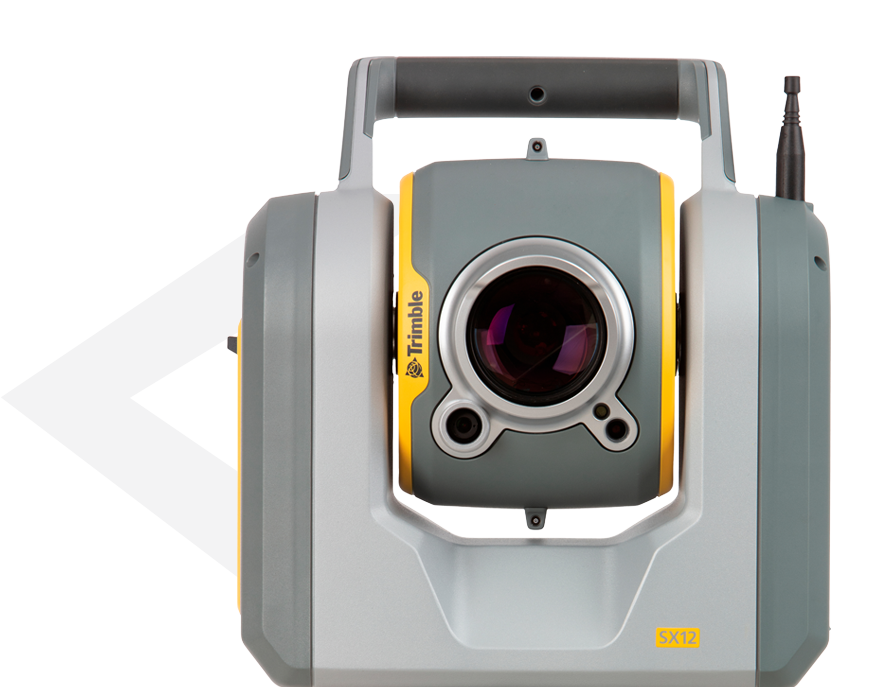

Trimble SX12 Scanning Total Station
SKU: SX12
- THE ALL-IN-ONE SCANNING TOTAL STATION
The Trimble SX12 combines high-precision surveying, fast 3D scanning, and advanced imaging in one powerful instrument, giving professionals complete site documentation from a single setup. - Request A Quote
- Talk With A Rep

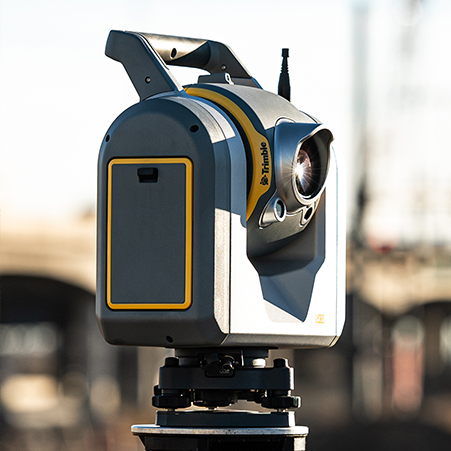

High-Precision Surveying + Fast 3D Scanning
The SX12 combines survey-grade accuracy with rapid 3D data capture. Collect dense point clouds, panoramic images, and precise survey shots with one instrument. Reduce setups, simplify workflows, and deliver complete datasets faster.

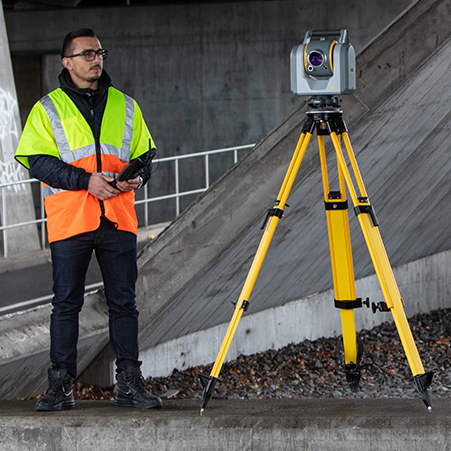

Streamlined Field-to-Office Workflow
The SX12 works seamlessly with Trimble Access in the field and Trimble Business Center or RealWorks in the office for processing, registration, and analysis. Share results easily through Trimble Clarity for quick client collaboration.
Built for Demanding Field Conditions
With an IP55 rating and a wide operating temperature range, the SX12 is built for tough jobsites. It performs reliably across construction, civil engineering, mining, utilities, and forensic applications.
Precise. Fast. Integrated.

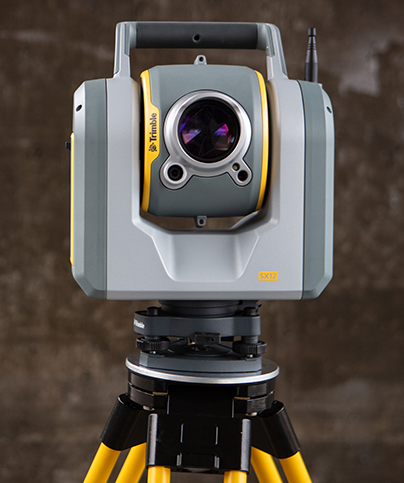

Description
The Trimble SX12 Scanning Total Station redefines versatility by combining the functionality of a robotic total station with the power of a high-speed 3D scanner. Whether you're performing topographic surveys, capturing as-builts, or documenting complex structures, the SX12 provides the data quality, accuracy, and efficiency required for today’s geospatial challenges.
Key Advantages of the Trimble SX12
- Integrated Survey + 3D Scanning: Eliminate the need for multiple instruments. The SX12 captures both precise survey measurements and dense point clouds in a single workflow.
- High-Accuracy Optics and EDM: Achieve survey-grade angular accuracy and millimeter-level distance precision, ensuring your point clouds and survey control align perfectly.

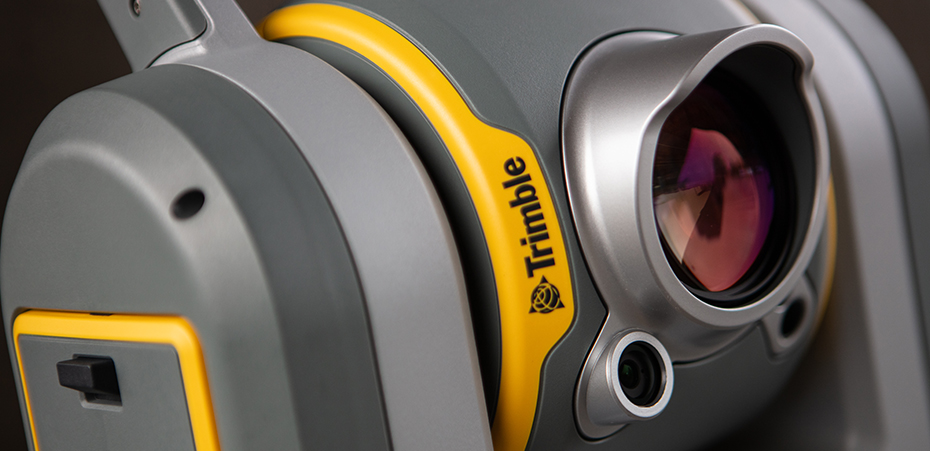

- Trimble VISION™ Camera System: Three integrated cameras provide live video, photo documentation, and measurement through the controller — enabling remote aiming without looking through the telescope.
- Eye-Safe Green Laser Pointer: Highly visible, adjustable, and ideal for long-range stakeout, tunneling, and underground environments.
- Robotic Performance: MagDrive™ servo technology enables ultra-smooth, fast, and silent movement for efficient one-person operation.
Why Choose the Trimble SX12?
The SX12 is a powerful hybrid tool that reduces equipment needs, accelerates workflows, and enhances data consistency across your projects. Whether you’re a surveyor, engineer, designer, or investigator, the SX12 unlocks new efficiency and accuracy — all within the trusted Trimble ecosystem.
Take control of your projects with an instrument built for precision, durability, and unmatched integration.
Compare Terrestrial Scanning Systems
| Product | Scan Speed | Scan Range | Range Noise | 3D Point Accuracy | Scan Time | Imaging | Image Acquisition Time | Interface | Dual Axis Compensator | Ingress Protection | Laser Class |
| Trimble X9 Core | Up to 500 kHz | 0.6m-80m | < 1.5mm @ 30 m on 80% albedo | 3.0 mm @20 m | 2-7 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy less than 3", Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X9 Premium | Up to 1000 kHz | 0.6m-150m | < 1.5mm @ 30 m on 80% albedo | 3.0 mm @20 m | 1-6 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6 min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy less than 3", Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X12 | Up to 2,187 kHz | 0.3m - 250 m; 365 m (Ambiguity Interval) | 0.25mm @ 25m (136 kHz) | 2.2 mm @ 20 m | 1-3 minutes | 80 MP panorama, paralax free image matching | 2-2.5 min (HDR) | Onboard touchscreen or Trimble Perspective on Windows tablet | Accuracy 14", Range ±0.5°, Resolution 0.001° | IP54 | Laser class 1, eye safe in accordance with IEC 60825-1 |
| Trimble SX12 | 26.6 kHz | 0.9m - 600m | 1.5mm @ 50 m on 18-90% reflectivity | 2.5mm @100 m std dev on sphere target position | 12 minutes | 3 calibrated cameras in telescope powered by Trimble VISION™ technology | 2.5 min Standard | WLAN via Trimble Access | Accuracy 0.5", Range ±5.4', Resolution 0.3" | IP55 | Pulsed laser 1550 nm; Laser class 1M |
